Filter Housing

  • Stainless steel portable cart filtration system
  • Stainless steel portable cart filtration system
  • Stainless steel portable cart filtration system
Stainless steel portable cart filtration systemStainless steel portable cart filtration systemStainless steel portable cart filtration system

Stainless steel portable cart filtration system

  • mobile filtration system
  • Type:portable cart filtration system
  • Material:Stainless Steel
  • Single bag, cartridge, multi bag
  • Product description: Single bag, cartridge, multi bag portable filtration system is also called mobile filtration system.
  • INQUIRY

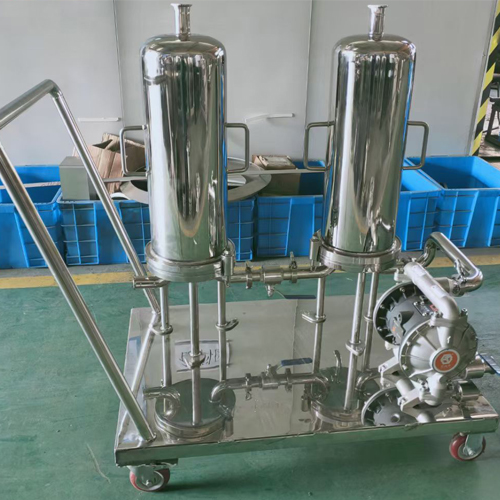

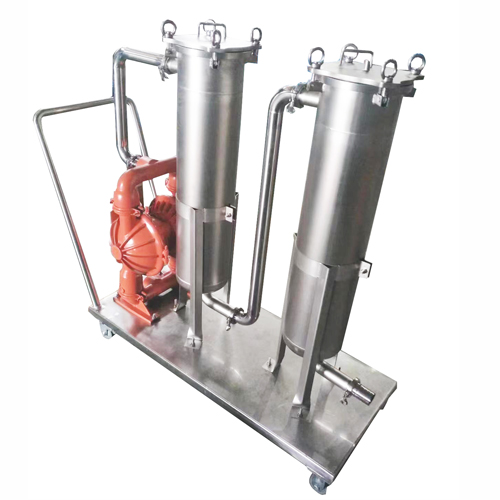

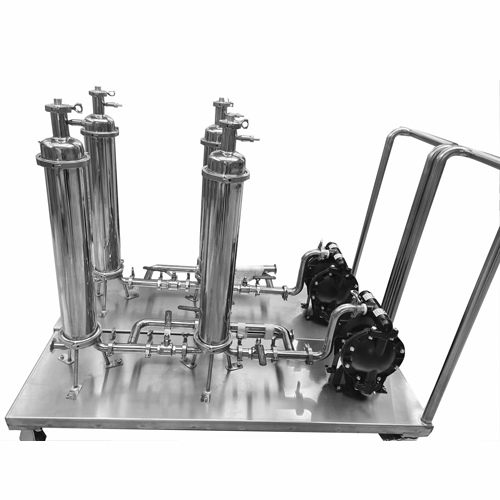

Stainless steel portable cart filtration system is a filtration system that organically integrates filter, air diaphragm pump, mobile cart and other components. The portable body is made of Stainless steel material, with high structural strength and corrosion resistance. The pump and filter are connected by quick installation pipeline. Simple structure, light and flexible, easy for workers to operate, and can be freely moved to the production line for work. The pump can be diaphragm pump, centrifugal pump or gear pump.

Product features
1. For ease of use, the whole part is installed on a four wheeled trolley, which is convenient to move, and can realize multi variety filter replacement.
2. One machine can be used for multiple purposes.
3. Quick mounting structure, easy to install and disassemble.
4. The main parts of the filter barrel and trolley are made of stainless steel, and the bottom of the device is treated by sandblasting or wire drawing, with long service life, corrosion resistance and no oil pollution.
5. The design of overflow valve and combined valve block  simplifies the pipeline components and process flow.
6. The mechanism is designed reasonably, the components are selected carefully, the performance is stable, safe and reliable, and the use and maintenance are convenient.
7. The selection of filters can be customized according to different requirements of customers, thus meeting the needs of different filtering materials.
8. The design is simple and reasonable, the operation is convenient, the appearance is generous, the place can be changed at any time, and the alternative filtration of multiple posts can be realized.


Filter housing code

1P1S

1P2S

1P3S

1P4S

Fitting standard bags

P1S

P2S

P3S

P4S

Filter Area()

0.25

0.5

0.09

0.16

Max flow rate on water(m³)

20

40

6

12

Filter volum(L)

15.5

27

3

4.5

Designed Temp()

150

150

150

150

Designed Pressure(bar)

10

10

10

10

Inlet&Outlet connection

Flange/NPT/BSP

Sealing material

Sillicone/viton/EPDM/PTFE

Surface treatment

Polished and sandblast

Housing material

SS304/SS316L/Carbon Steel



Kunshan KingWay Industrial Filtration Co.,Ltd is a top quality filter medium supplier with 2 manufacture factories separately located in Kunshan City and Yancheng City, Jiangsu Province, China. By close partnerships with leading manufacturers of raw materials in China,we are aim at providing our customers with high price/performance ratio products & One-stop comprehensive procurement service.

KingWay has been well involved in filtration industry for more than 10 years with rich experience in providing filter products like Needle Felt,Nylon mesh, Liquid filter bags, filter cartridges, Filter Housing,Dust Filter Bags, Dust Filter Cartridges,Filter Cages and Air Filters for the applications in liquid filtration,dust filtration and air filtration.

KingWay, just as the meaning of its name, means that we always put quality first. The outstanding raw material manufacturers that we cooperate with have a complete quality assurance system, involving the whole process, from research and development to manufacturing. National level laboratories have established systematic reliability testing standards and methods. Our products have enjoyed a good reputation for its high-quality and low-price among our customers all over the world.

KingWay always insists on the philosophy of creating value for our customers. Our vision is to be a leading supplier in filtration industries. Our business values are honesty and faithfulness, being passionate and staying devoted to our work,our customers always get the biggest satisfaction. Furthermore we adhere to Quick action,Teamwork and Innovation.

Sincerely expect your kind inquiry and cooperation, our unwavering attention to all your needs ensures results that far exceed your expectations!

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer with manufacturing Filter media,filter bags,filter cartridges and filter housing.
Q2: How long is your delivery time?
A2: Generally it is 7-30 days, Depends on your project.
Q3:How do you control the quality and delivery?

A3: A pre-production sample before mass production and final Inspection before shipment.
Export package is strong and safety for long delivery.
Q4: How do you ship the goods?
A4: We usually ship by sea,air or International express(E.g.:DHL, Fedex, UPS,etc.) .
Q5: What's your payment terms?
A5:100% TT in advance(Order value below USD10,000)

30% TT in advance,balance before shipment(Order value above USD10,000)

Q6:Can you OEM?
A6: Yes,we can do OEM products.We can print your logo in the label or nameplate.
