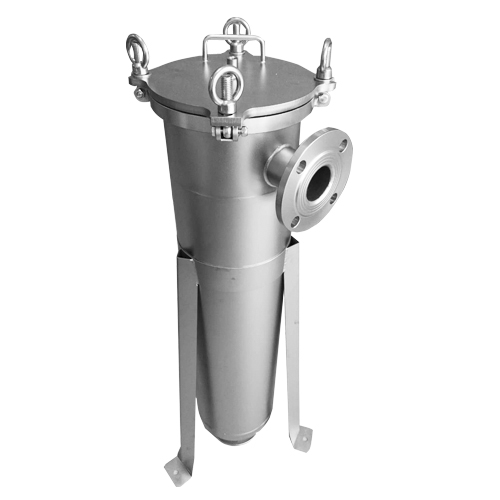

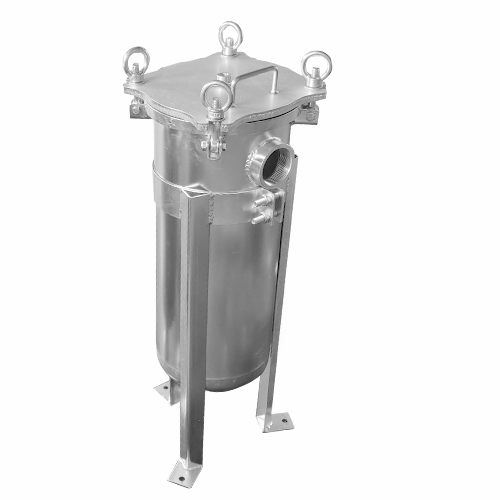

Single bag filter housings with side inlet piping connections and bottom outlet are a perfect choice for cost-sensitive applications. The side inlet piping connections can be adapted to different directions, according to your specific needs. The simple design allows for easy cleaning of the interior of the vessel. Precision castings and swing eye-bolt closure guarantee integrity even at high pressures.
Filter housing code |
1P1S |
1P2S |
1P3S |
1P4S |
Fitting standard bags |
P1S |
P2S |
P3S |
P4S |
Filter Area(㎡) |
0.25 |
0.5 |
0.09 |
0.16 |
Max flow rate on water(m³) |
20 |
40 |
6 |
12 |
Filter volum(L) |
15.5 |
27 |
3 |
4.5 |
Designed Temp(℃) |
150 |
150 |
150 |
150 |
Designed Pressure(bar) |
10 |
10 |
10 |
10 |
Inlet&Outlet connection |
Flange/NPT/BSP |
|||
Sealing material |
Sillicone/viton/EPDM/PTFE |
|||
Surface treatment |
Polished and sandblast |
|||
Housing material |
SS304/SS316L/Carbon Steel |
Applications
Pulp and PAPER, Food and Beverage, Metal Working Fluids, Chemical Processing, Automotive
Electronics, Pharmaceutical, Petrochemicals, Paints,Inks, Resins and coatings
Features
Side inlet piping connection and evacuation cover - Eliminates liquid spillover when cover is opened .
Adaptable lid position - Great accessibility,easy maintenance.
Integrated handle cover - Single-handed,user-friendly operation.
Unique basket seal design - EasyLock ensures no bypass.
Swing eye-bolt closure - Guarantees integrity even at high pressures.
Electro-polished stainless steel perforated plate basket - Prefect bag support,easy to clean.
Adjustable mounting legs - Stable and adaptable construction.
KingWay has been well involved in filtration industry for more than 10 years with rich experience in providing filter products like Needle Felt,Nylon mesh, Liquid filter bags, filter cartridges, Filter Housing,Dust Filter Bags, Dust Filter Cartridges,Filter Cages and Air Filters for the applications in liquid filtration,dust filtration and air filtration.
KingWay, just as the meaning of its name, means that we always put quality first. The outstanding raw material manufacturers that we cooperate with have a complete quality assurance system, involving the whole process, from research and development to manufacturing. National level laboratories have established systematic reliability testing standards and methods. Our products have enjoyed a good reputation for its high-quality and low-price among our customers all over the world.
KingWay always insists on the philosophy of creating value for our customers. Our vision is to be a leading supplier in filtration industries. Our business values are honesty and faithfulness, being passionate and staying devoted to our work,our customers always get the biggest satisfaction. Furthermore we adhere to Quick action,Teamwork and Innovation.
Sincerely expect your kind inquiry and cooperation, our unwavering attention to all your needs ensures results that far exceed your expectations!
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer with manufacturing Filter media,filter bags,filter cartridges and filter housing.
Q2: How long is your delivery time?
A2: Generally it is 7-30 days, Depends on your project.
Q3:How do you control the quality and delivery?
A3: A pre-production sample before mass production and final Inspection before shipment.
Export package is strong and safety for long delivery.
Q4: How do you ship the goods?
A4: We usually ship by sea,air or International express(E.g.:DHL, Fedex, UPS,etc.) .
Q5: What's your payment terms?
A5:100% TT in advance(Order value below USD10,000)
30% TT in advance,balance before shipment(Order value above USD10,000)
Q6:Can you OEM?
A6: Yes,we can do OEM products.We can print your logo in the label or nameplate.
