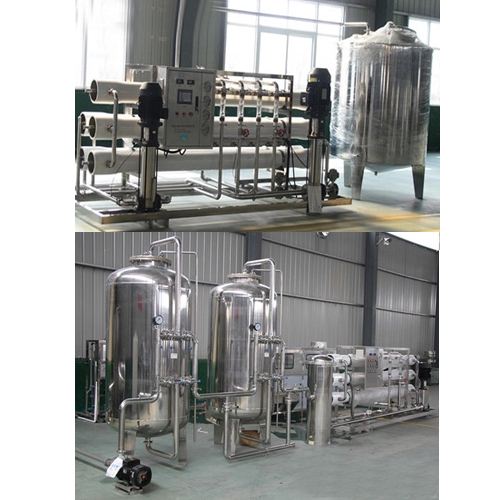

Pure Water Cleaning System

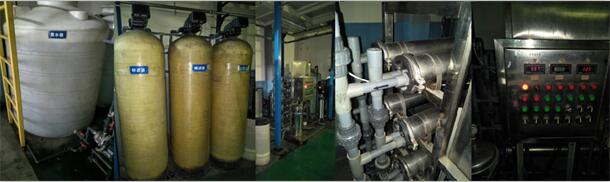

Working Process: Raw water tank - Raw water pump - Quartz Sand filter - Activated Carbon filter - Sodium ion exchanger - Precision filter - RO membrane filter - UV sterilizer - Finished water tank.

Pure Water Cleaning System is treated to the highest levels of purity for all contaminant types, including: organic and inorganic compounds, dissolved and particulate matter, and dissolved gases.

Raw Water tank: For the storage of raw water, to solve the problem of insufficient raw water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate.

Booster pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration.

Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water.

Active carbon filter: mainly remove organic substances, residual chlorine and odor in tap water.

Softener: mainly remove the calcium and magnesium in tap water, reduce the hardness of water.

Precision filter: further filtration, protection of reverse osmosis membrane.

Pressure pump: provide enough pressure for reverse osmosis system.

Reverse osmosis system: the core part of pure water equipment, the production of high-purity water.

Pure water tank: storage pure water, can change the size of the water tank, after the below process, The water result is pure enough for different application.

EDI module: It mainly utilizes electricity, ion exchange membranes and resin to deionize water and separate dissolved ions (impurities) from water.
