Dust Filter Media

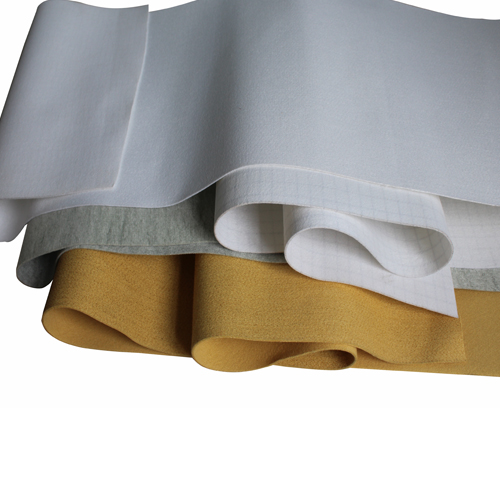

The normal temperature needle punched felt have moderate temperature resistance. It is effective normal temperature filter media. Good air permeability, great twist resistance wearable, and effective dust cleaning performance. Widely used in the field of steel, cement, chemical industry, food processing and pharmaceutical manufacturing, etc.
|
Name |
Weight (g/㎡) |
Thicness (mm) |
Air permeability (㎡/㎡.min) |
Working Temperature(℃) |
Thermal Shrinkage |
||
|
Continuous |
Peak |
Warp |
Weft |
||||
|
Polyester needle punched felt |
400-700 |
1.7-2.6 |
8-20 |
130 |
150 |
≤1 |
≤1.5 |
|
Polypropylene needle punched felt |
400-600 |
1.7-2.6 |
8-20 |
90 |
110 |
≤1 |
≤1.5 |
|
Acrylic needle punched felt |
500-600 |
1.8-2.2 |
8-20 |
125 |
150 |
≤1 |
≤1.5 |
|
With PTFE membrane needle punched felt |
400-600 |
1.7-2.5 |
3.6-5 |
120 |
150 |
≤1 |
≤1.5 |
High temperature needle punched felt are made by high temperature resistance chemical fiber and treated with heat setting, singeing, calendaring, etc. The operation temperature is between 180-260℃. It is a kind high efficiency filter material, good twist resistance, good wearing resistance, great dust cleaning effective. Excellent resistance against acids, alkali and hydrolysis depends on material.
|
Name |
Weight (g/㎡) |
Thicness (mm) |
Air permeability (㎡/㎡.min) |
Working Temperature(℃) |
Thermal Shrinkage |
||
|
Continuous |
Peak |
Warp |
Weft |
||||
|
PPS needle punched felt |
400-650 |
1.8-2.2 |
8-20 |
160 |
190 |
≤1 |
≤1.5 |
|
Aramid needle punched felt |
450-550 |
1.8-2.4 |
8-20 |
204 |
240 |
≤1 |
≤1.5 |
|
PTFE needle punched felt |
750-900 |
1.7-2.2 |
8-20 |
260 |
280 |
≤1 |
≤1.5 |
|
P84 needle punched felt |
500-600 |
2.0-2.4 |
8-20 |
220 |
260 |
≤1 |
≤1.5 |
|
Fiberglass compound needle punched felt |
850-950 |
2.2-2.8 |
10-25 |
260 |
280 |
≤1 |
≤1.5 |
