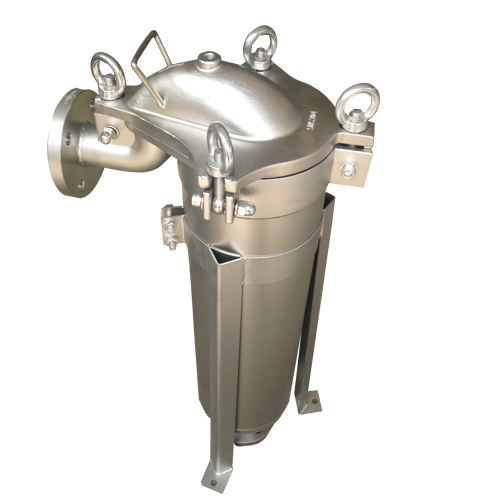

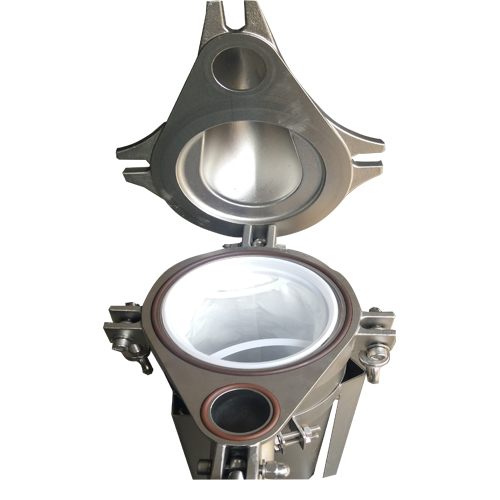

Top inlet bag filter housing is the finest single bag filter housing available.It flows through the top design results in minimum headroom of unfiltered liquid for easy bag change-out as well as providing optimum sealing of the filter bag.Quality construction and design assure clean effluent and protection for all downstream equipment.
|
Filter housing code |
1P1S |
1P2S |
1P3S |
1P4S |
|
Fitting standard bags |
P1S |
P2S |
P3S |
P4S |
|
Filter Area(㎡) |
0.25 |
0.5 |
0.09 |
0.16 |
|
Max flow rate on water(m³) |
20 |
40 |
6 |
12 |
|
Filter volum(L) |
15.5 |
27 |
3 |
4.5 |
|
Designed Temp(℃) |
150 |
150 |
150 |
150 |
|
Designed Pressure(bar) |
10 |
10 |
10 |
10 |
|
Inlet&Outlet connection |
Flange/NPT/BSP |
|||
|
Sealing material |
Sillicone/viton/EPDM/PTFE |
|||
|
Surface treatment |
Polished and sandblast |
|||
|
Housing material |
SS304/SS316L/Carbon Steel |
|||
