High Flow Filter Cartridge

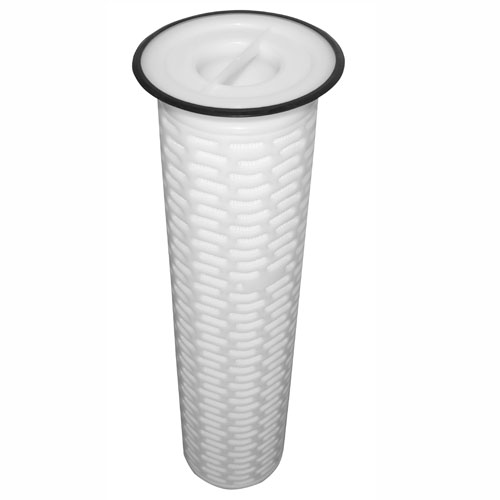

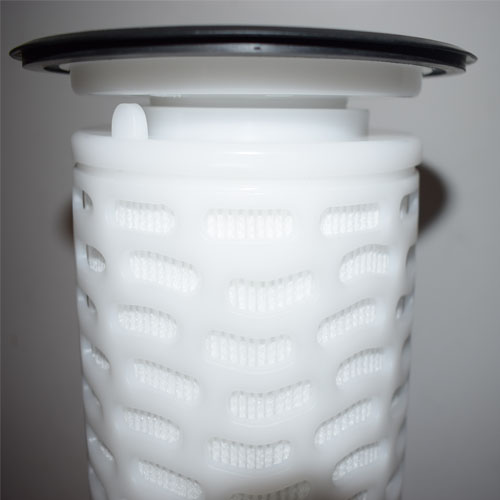

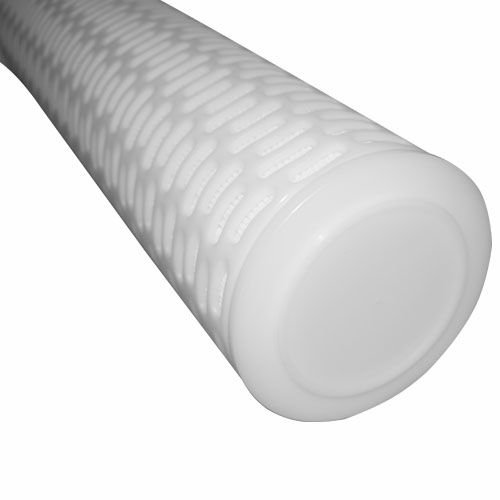

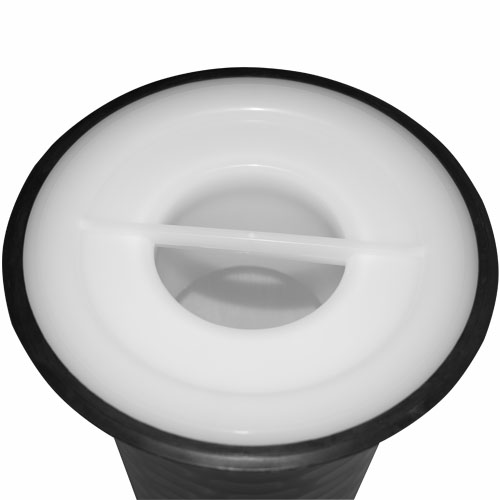

KWBAG High Flow Pleated Filter Cartridge

KWBAG High Flow Pleated Filter Cartridge

Type: Bag type Filter Cartridge
Material: Pleated Depth Polypropylene
Max. Operating Temperature : 80°C
Max. Operating DP : 3.0bar@ 60°C
Product description: KWBAG High Flow Pleated Filter Cartridge with high performance filter media and pleated configuration with high filtration area.
INQUIRY

KWBAG High Flow Pleated filter cartridges combine the performance advantages of cartridge filters with the ease use of bag filter systems. It offers unique combination of benefits and unmatched economics. Filtration customers no longer have to choose between cartridge and bag technologies. The pleated media increases the effective filtration area with high flow and long service life.

DIMENSION

[ OD ]：6”(Ø 152mm)

[ Length ]：16 ”(370mm) for size 1 bag

32”(634mm) for size 2 bag

[ Media ]：Pleated Depth Polypropylene (PP)

[ Support ]：PP

[ End Cap ]：PP

[ Adjustable Flange ] ：PP

[ Sealing ]：EPDM, NBR

[ Max. Operating Temperature ]：80°C

[ Max. Operating DP ]：3.0bar@ 60°C

[ Recommended Change out Differential Pressure ]：2.0Bar,20°C
