static bag filter housing

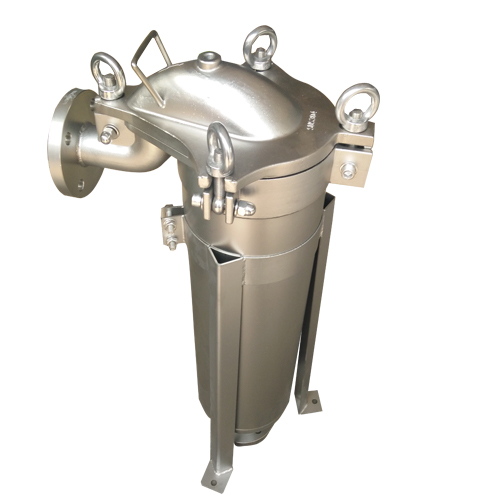

Single-bag filter housings with top inlet and bottom outlet are the best choice for cost-effective industrial and commercial applications. Cast construction results in a compact, yet heavy-duty design. Fluid enters at the center of the bags and smoothly flows down, minimizing turbulence during the filtration process. Improved efficiency and longer service life of filter bags are the desirable result. A hinged cover with swing-bolt closure is designed to withstand high pressures. It opens and closes quickly and easily, adapting to different opening directions and allowing for a quick bag change-out. The cover directly compresses the filter bag seal-ring, eliminating the possibility of bypass.

Specification

Size 01           Size 02

.........................................................................................................................................

Type code                           1P1S            1P2S

.........................................................................................................................................

Max. Flow rate(m³/h)              20             40

.........................................................................................................................................

Filter area(㎡)                       0.25            0.5

.........................................................................................................................................

Filter housing volume(litre)               15.5            27

.........................................................................................................................................

Filter housing weight(kg)               approx.15      approx.20

.........................................................................................................................................

Material of construction Housing              SS316/SS304

                                       Basket              SS316/SS304

                                      Closure       SS304(Swing eye bolts and ring nuts)

                                        Seal          BUNA N/EPDM/VITON/SILICON/FEP+FPM

                                 Other parts             SS304

.................................................................................................................................

Operating data                                  Max. 10bar

.................................................................................................................................

Inlet & outlet:                              DIN/ANSI/BSP/NPT

.................................................................................................................................

Packing box(cm)                   85*30*30cm         120*30*30cm

Applications

Pulp and Paper, Food and Beverage, Metal Working Fluids, Chemical Processing

Automotive, Electronics, Pharmaceutical, Petrochemicals, Paints,Inks, Resins and coatings

Features

Improved efficiency and longer service life of filter bags because fluid enters at the center of the bags and smoothly flows down,minimizing turbulence.

Easy to install adjustable mounting legs.

Cast construction results in a compact,yet heavy-duty design.

Cover directly compresses the filter bag seal-ring,eliminating the possibility of bypass.

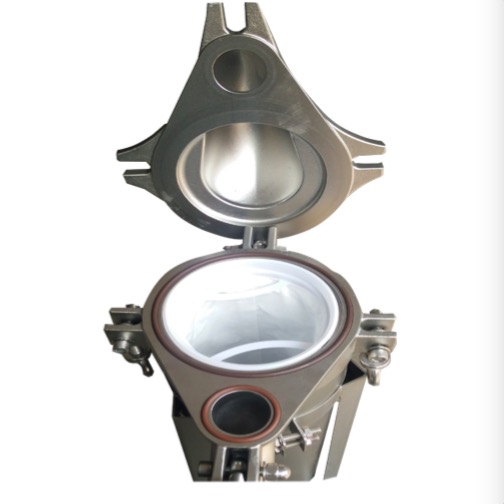

Hinged cover opens and closes quickly and easily, adapting to different opening directions.

Easy bag change-out.

Kunshan KingWay Industrial Filtration Co.,Ltd is a top quality filter medium supplier with 2 manufacture factories separately located in Kunshan City and Yancheng City, Jiangsu Province, China. By close partnerships with leading manufacturers of raw materials in China,we are aim at providing our customers with high price/performance ratio products & One-stop comprehensive procurement service.

KingWay has been well involved in filtration industry for more than 10 years with rich experience in providing filter products like Needle Felt,Nylon mesh, Liquid filter bags, filter cartridges, Filter Housing,Dust Filter Bags, Dust Filter Cartridges,Filter Cages and Air Filters for the applications in liquid filtration,dust filtration and air filtration.

KingWay, just as the meaning of its name, means that we always put quality first. The outstanding raw material manufacturers that we cooperate with have a complete quality assurance system, involving the whole process, from research and development to manufacturing. National level laboratories have established systematic reliability testing standards and methods. Our products have enjoyed a good reputation for its high-quality and low-price among our customers all over the world.

KingWay always insists on the philosophy of creating value for our customers. Our vision is to be a leading supplier in filtration industries. Our business values are honesty and faithfulness, being passionate and staying devoted to our work,our customers always get the biggest satisfaction. Furthermore we adhere to Quick action,Teamwork and Innovation.

Sincerely expect your kind inquiry and cooperation, our unwavering attention to all your needs ensures results that far exceed your expectations!

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer with manufacturing Filter media,filter bags,filter cartridges and filter housing.
Q2: How long is your delivery time?
A2: Generally it is 7-30 days, Depends on your project.
Q3:How do you control the quality and delivery?

A3: A pre-production sample before mass production and final Inspection before shipment.
Export package is strong and safety for long delivery.
Q4: How do you ship the goods?
A4: We usually ship by sea,air or International express(E.g.:DHL, Fedex, UPS,etc.) .
Q5: What's your payment terms?
A5:100% TT in advance(Order value below USD10,000)

30% TT in advance,balance before shipment(Order value above USD10,000)

Q6:Can you OEM?
A6: Yes,we can do OEM products.We can print your logo in the label or nameplate.
