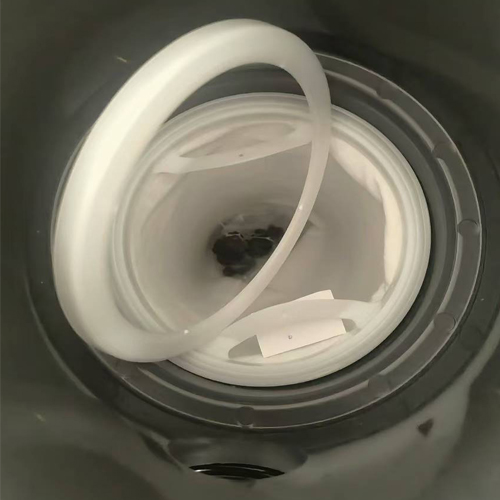

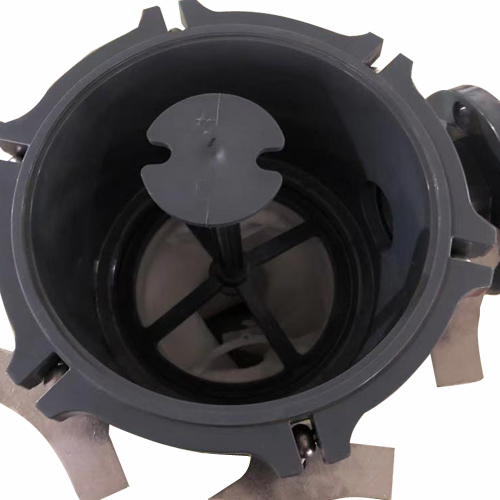

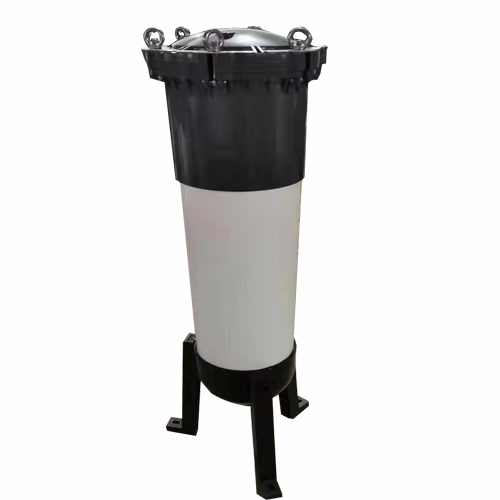

The filter adopts UPVC material, the parts are formed at one time, standardized production, easy to use and maintenance. UPVC material has strong corrosion resistance, so it can be widely used in food, cosmetics, chemical, medical, textile and other fields. The UPVC bag filter housing consists of three parts, including filter body, filter basket and filter bag.
Type
Size
Bag size
Inlet/outlet
Inlet height
Max pressure
KWF-BF-1-1-A
D225-H805
D7”(178mm)*H17”(419mm)
Flange:
DN50/ANS12
650
0.4MPA
KWF-BF-1-2-A
D225-H1190
D7”(178mm)*H32”(813mm)
1035
KWF-BF-1-1-B
D225-H820
D7”(178mm)*H17”(419mm)
665
0.7MPA
KWF-BF-1-2-B
D225-H1200
D7”(178mm)*H32”(813mm)
1045
The highest of working temperature is 45℃, the size of the two holes in the lid of filter is G 1/4”. If the thread of pressure gauge is metric standard should add an adaptor.
