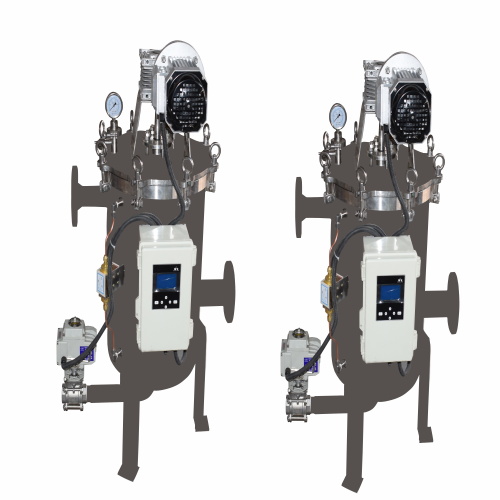

Automatic self cleaning filter housing

High efficiency scraper type self-cleaning filter housing. The particle impurities on the outer surface of the filter basket are automatically removed by mechanical scraping, which can be continuously filtered online, end the heavy filter consumable replacement and cleaning work, and do not produce disposable filter consumables, saving the cost of consumables and environmental protection treatment. The filtration pressure loss is minimal, the flow is stable, the pipeline energy consumption is saved, the process is conducive to continuous stability, the closed filtration, the leakage of dangerous materials is conducive to safe production. High efficiency scraper type self-cleaning filter housing, the motor drives the scraper to rotate, scraping the impurities on the inner surface of the filter basket, suitable for ultra-high viscosity and coarse precision filtration.

Working principle

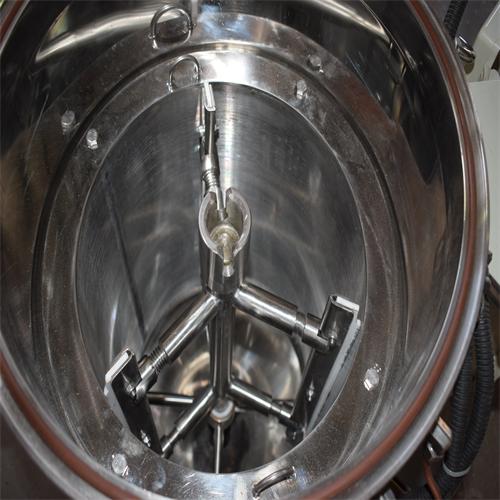

The liquid flows in from the filter inlet, flows out from the inner surface of the filter basket, the lower end of the filter basket is connected to the outlet, and the liquid flows out from the outlet; When a certain amount of impurities are intercepted on the surface of the filter basket, the cleaning process starts at a fixed time or according to the set pressure difference. The gear motor drives the scraper attached to the inner surface of the filter basket to rotate and scrape the impurities on the inner surface of the filter basket. The impurities leave the surface of the filter basket along the scraper, and the liquid falls into the bottom of the filter, and the impurities accumulate at the bottom of the filter. The liquid containing high concentration of impurities is discharged from the sewage outlet, and the residual liquid can be recycled if necessary.

KingWay has been well involved in filtration industry for more than 10 years with rich experience in providing filter products like Needle Felt,Nylon mesh, Liquid filter bags, filter cartridges, Filter Housing,Dust Filter Bags, Dust Filter Cartridges,Filter Cages and Air Filters for the applications in liquid filtration,dust filtration and air filtration.

KingWay, just as the meaning of its name, means that we always put quality first. The outstanding raw material manufacturers that we cooperate with have a complete quality assurance system, involving the whole process, from research and development to manufacturing. National level laboratories have established systematic reliability testing standards and methods. Our products have enjoyed a good reputation for its high-quality and low-price among our customers all over the world.

KingWay always insists on the philosophy of creating value for our customers. Our vision is to be a leading supplier in filtration industries. Our business values are honesty and faithfulness, being passionate and staying devoted to our work,our customers always get the biggest satisfaction. Furthermore we adhere to Quick action,Teamwork and Innovation.

Sincerely expect your kind inquiry and cooperation, our unwavering attention to all your needs ensures results that far exceed your expectations!

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer with manufacturing Filter media,filter bags,filter cartridges and filter housing.
Q2: How long is your delivery time?
A2: Generally it is 7-30 days, Depends on your project.
Q3:How do you control the quality and delivery?

A3: A pre-production sample before mass production and final Inspection before shipment.
Export package is strong and safety for long delivery.
Q4: How do you ship the goods?
A4: We usually ship by sea,air or International express(E.g.:DHL, Fedex, UPS,etc.) .
Q5: What's your payment terms?
A5:100% TT in advance(Order value below USD10,000)

30% TT in advance,balance before shipment(Order value above USD10,000)

Q6:Can you OEM?
A6: Yes,we can do OEM products.We can print your logo in the label or nameplate.
